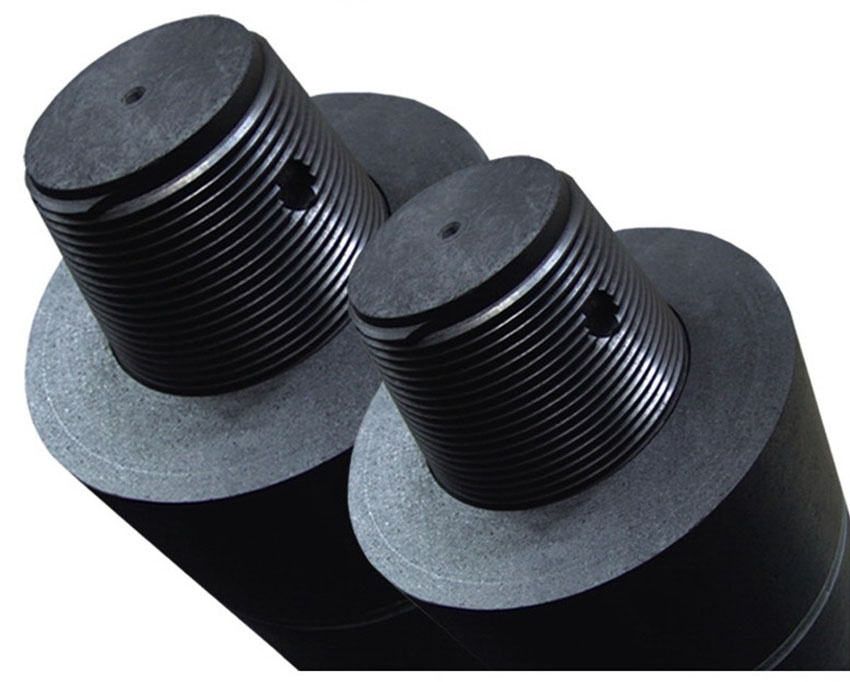

Graphite Electrodes

Graphite electrodes serve to transfer the electrical energy from the power supply to the steel melt in the EAF bath. They are typically made using premium petroleum needle coke, coal tar pitch, and some additives. Free quote online. E-mail: jinpengcarbon@gmail.com.
Availability:

E-mail: jinpengcarbon@gmail.com

Graphite Electrodes


Graphite Electrodes

  Free quote online.

Graphite Electrodes


Graphite Electrodes


Description:

Graphite electrodes serve to transfer the electrical energy from the power supply to the steel melt in the EAF bath. They are typically made using premium petroleum needle coke, coal tar pitch, and some additives.  Free quote online.


Graphite electrodes consumption varies between 1.8 and 9.9 kg/t of liquid steel depending on the process characteristics and electrode quality. The electrode consumption usually was approximately 1.1 kg per ton as a result of the reduction of time between the taps to 40 min and consequently the lower electricity consumption (345 kWh/t). Graphite electrodes are classified as regular grade or premium grade on the basis of their physical properties.  Free quote online.


Specification:


Specification Units Amounts
Ash wt. −% 0.2
Apparent density g/cm3 1.65–1.92
Porosity % 22–28
Transverse strength N/mm2 9–13.8
Young Modulus × 103 N/mm2 6.21–9.66
Electrical resistance × 106 Ω.mm 45.7–83.8
Coefficient of thermal expansion (CTE) × 10 − 6/°C 2.16–3.2

E-mail: jinpengcarbon@gmail.com

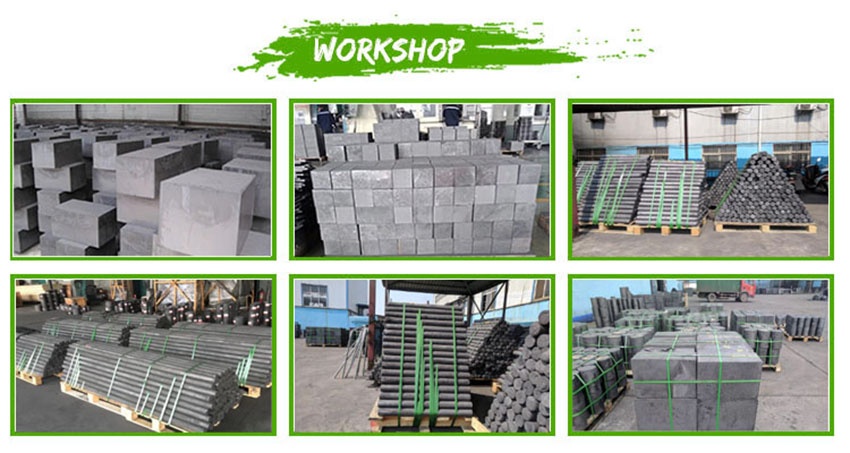

WORKSHOP
